詳細介紹

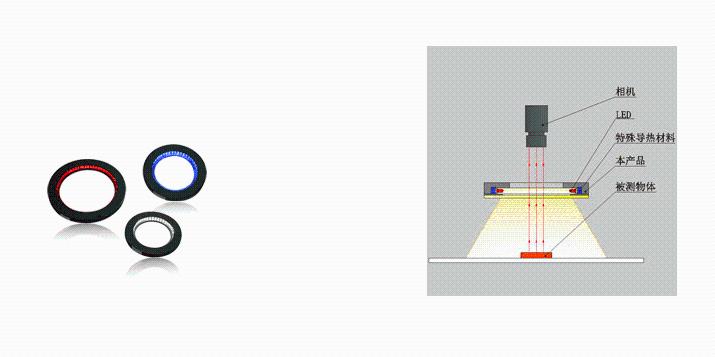

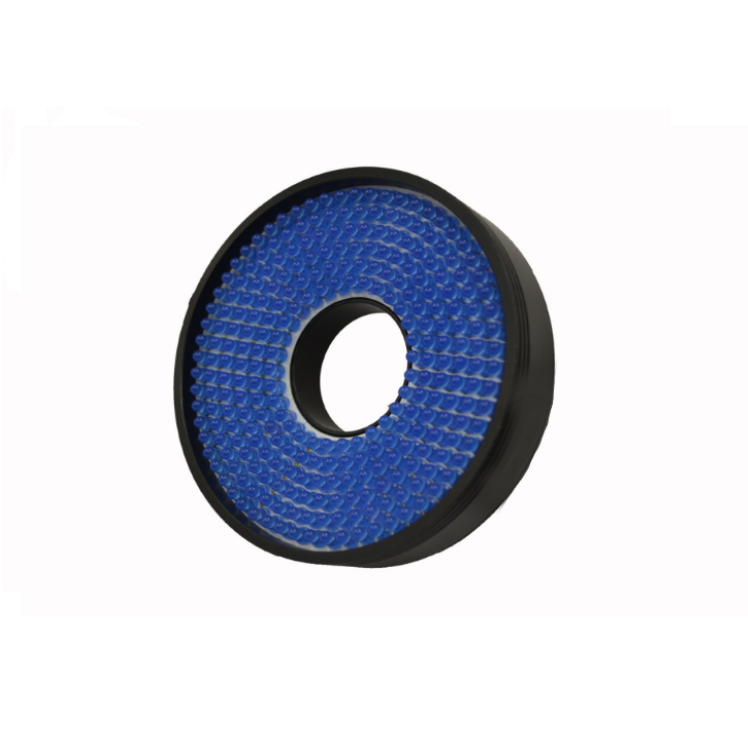

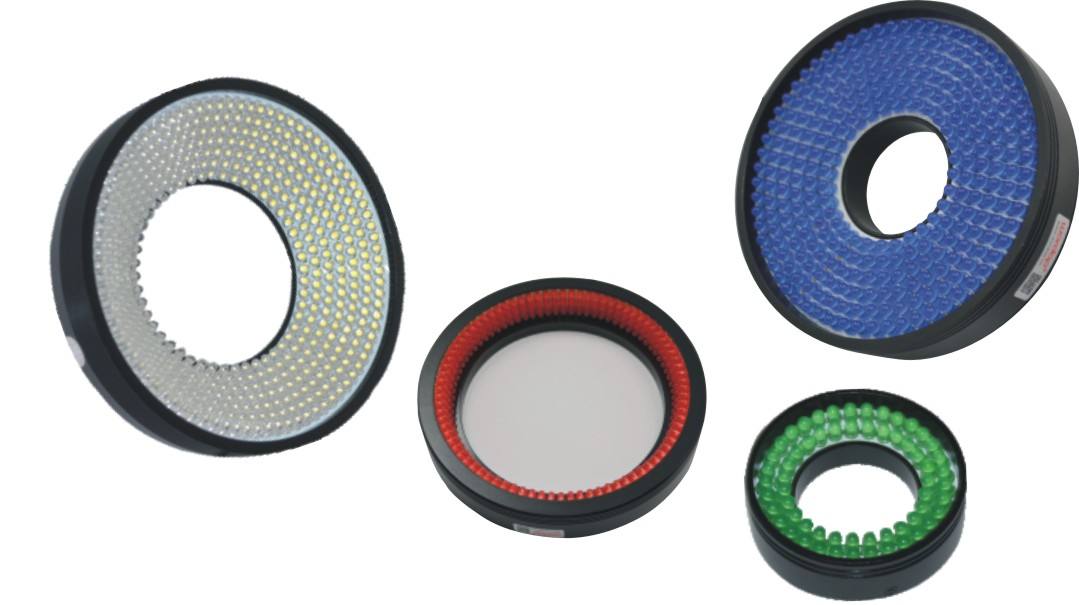

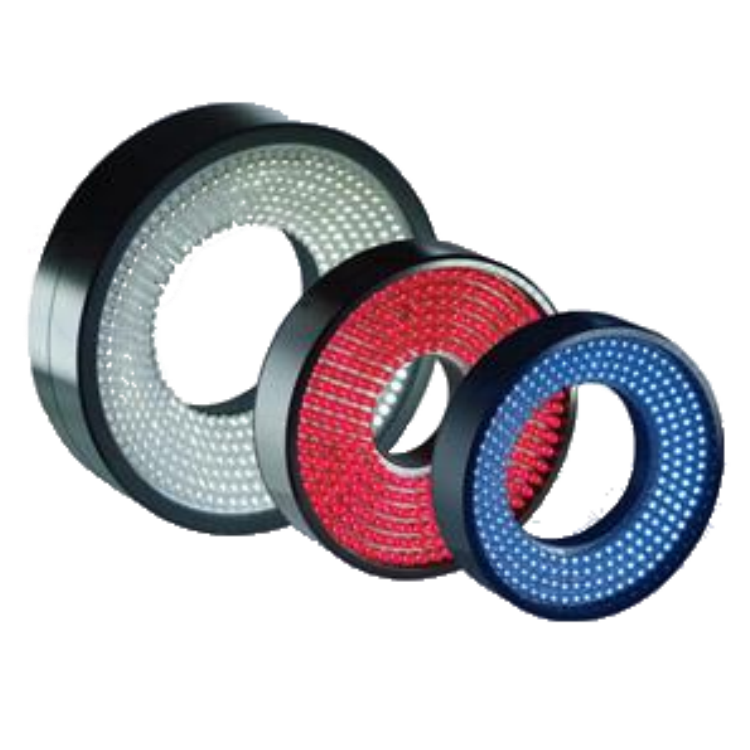

環形光源由高亮LED陣列特殊設計而成，光線水平照射，在5-10mm的工作距離內可突出物體的邊緣與輪廓。
產品特點：*角度多樣且可定制 *安裝簡單，設計緊湊 *高密度LED陣列，亮度高 *可選配漫射板，以適應不同的需要 | 行業應用：》IC芯片外觀及字符檢測 》PCB基板檢測 》產品包裝缺陷檢測 》產品標簽檢測 》顯微鏡照明 》通用外觀缺陷檢測 | 應用范圍：1.金屬表面的劃痕。 2.IC表面上的字符。 3.外形輪廓的突出。 |
| 角度 | 型號 | 電壓 | 功率 | 顏色 | 備注 |
0度 | RZ6000 | 24V | 1.1W/1.8W | R/G/B/W | 光線與水平面的夾角為0度 |
| RZ7400 | 24V | 1.5W/2.1W | R/G/B/W | ||
| RZ9600 | 24V | 1.8W/2.9W | R/G/B/W | ||
| RZ12000 | 24V | 2.1W/3.6W | R/G/B/W | ||
| RZ14600 | 24V | 2.9W/4.7W | R/G/B/W | ||
| RZ20000 | 24V | 4.4w/6.5w | R/G/B/W | ||
30度 | RZ5030 | 24V | 1.9W/2.9W | R/G/B/W | 光線與水平面的夾角為30度 |
| RZ6030 | 24V | 2.2W/3.4W | R/G/B/W | ||
| RZ7430 | 24V | 1.9W/2.9W | R/G/B/W | ||
| RZ9030 | 24V | 3.8W/5.8W | R/G/B/W | ||
| RZ12030 | 24V | 4.3W/7.2W | R/G/B/W | ||
| RZ15030 | 24V | 10.1W/15.1W | R/G/B/W | ||
| RZ18030 | 24V | 9.1W/14.9W | R/G/B/W | ||
| RZ21030 | 24V | 13.0W/21.6W | R/G/B/W | ||
| 45度 | RZ5045 | 24V | 1.9W/2.9W | R/G/B/W | 光線與水平面的夾角為45度 |
| RZ7045 | 24V | 2.4W/3.8W | R/G/B/W | ||
| RZ9045 | 24V | 3.4W/5.0W | R/G/B/W | ||
| RZ10045 | 24V | 5.3W/7.9W | R/G/B/W | ||
| RZ12045 | 24V | 7.9W/13.2W | R/G/B/W | ||
| RZ15045 | 24V | 10.1W/15.1W | R/G/B/W | ||
60度 | RZ2860 | 24V | 0.2W/0.5W | R/G/B/W | 光線與水平面的夾角為60度 |
| RZ5060 | 24V | 1.0W/1.7W | R/G/B/W | ||
| RZ6060 | 24V | 1.7W/2.4W | R/G/B/W | ||
| RZ6660 | 24V | 2.2W/3.6w | R/G/B/W | ||
| RZ7060 | 24V | 2.2W/3.4w | R/G/B/W | ||
| RZ7460 | 24V | 2.6W/3.8W | R/G/B/W | ||
| RZ9060 | 24V | 2.9W/4.3W | R/G/B/W | ||
| RZ10060 | 24V | 4.3w/7.2w | R/G/B/W | ||
| RZ12060 | 24V | 8.6W/13.0W | R/G/B/W | ||
| RZ15060 | 24V | 8.6W/14.4W | R/G/B/W | ||
| RZ18060 | 24V | 8.6W/14.4W | R/G/B/W | ||
| RZ20060 | 24V | 9.6W/16.1W | R/G/B/W | ||
90度 | RZ2890 | 24V | 0.2W/0.5W | R/G/B/W | 光線與水平面的夾角為90度 |
| RZ3590 | 24V | 0.7W/1.0W | R/G/B/W | ||
| RZ3590 | 24V | 1.4W/2.4W | R/G/B/W | ||
| RZ7090 | 24V | 2.2W/3.6W | R/G/B/W | ||
| RZ9090 | 24V | 3.6W/6.0W | R/G/B/W | ||
| RZ10090 | 24V | 5.8W/8.6W | R/G/B/W | ||
| RZ12090 | 24V | 7.2W/12.0W | R/G/B/W | ||
| RZ15090 | 24V | 10.6W/15.8W | R/G/B/W | ||
| RZ16590 | 24V | 16.3W/24.5W | R/G/B/W | ||
| RZ20090 | 24V | 19.4W/32.4W | R/G/B/W | ||
特殊角度 | RZ3275 | 24V | 0.7W/1.2W | R/G/B/W | 光線與水平面的夾角為15/50/65/70/75/80度 |
| RZ3875 | 24V | 0.7W/1.2W | R/G/B/W | ||
| RZ4265 | 24V | 1.0W/1.4W | R/G/B/W | ||
| RZ5075 | 24V | 1.0W/1.7W | R/G/B/W | ||
| RZ5570 | 24V | 1.4W/2.4W | R/G/B/W | ||
| RZ6975 | 24V | 2.2W/3.6W | R/G/B/W | ||
| RZ7475 | 24V | 2.9W/4.3W | R/G/B/W | ||
| RZ8080 | 24V | 2.9W/4.3W | R/G/B/W | ||
| RZ9070 | 24V | 4.1W/6.7W | R/G/B/W | ||
| RZ10375 | 24V | 4.3W/7.2W | R/G/B/W | ||
| RZ12050(4) | 24V | 5.8W/9.6W | R/G/B/W | ||
| RZ12080 | 24V | 6.2W/9.4W | R/G/B/W | ||
| RZ17315 | 24V | 4.6W/7.4W | R/G/B/W | ||
| RZ18075 | 24V | 8.6W/14.4W | R/G/B/W | ||
| 紫外和紅外光源可根據客戶要求定制 | |||||
